LT5578 Datasheet, mixer equivalent, Linear Technology Corporation

LT5578 Features

• Mixer n n n n n n n n n High Output IP3: 27dBm at 0.9GHz 24.3dBm at 1.95GHz Low Noise Floor:
    –158dBm/Hz (POUT =
    –5dBm) High Conversion Gain: 1.4dB at 0.9GHz N

PDF File Details

Part number:

LT5578

Manufacturer:

Linear Technology Corporation

File Size:

249.34kb

Download:

📄 Datasheet

Description:

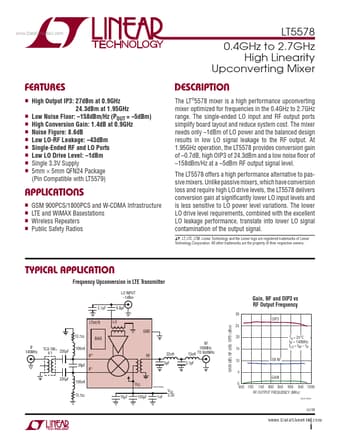

0.4ghz to 2.7ghz high linearity upconverting mixer. The LT®5578 mixer is a high performance upconverting mixer optimized for frequencies in the 0.4GHz to 2.7GHz range. The single-ended

LT5578 Application

• Applications n n n n GSM 900PCS/1800PCS and W-CDMA Infrastructure LTE and WiMAX Basestations Wireless Repeaters Public Safety Radios TYPICAL APPLI
