LT8471 - Dual Multitopology DC/DC Converters

Product Overview

Linear Technology Corporation

Datasheet Details

Part number	LT8471
Manufacturer	Linear Technology Corporation
File Size	503.66 KB
Description	Dual Multitopology DC/DC Converters
Datasheet	LT8471 Datasheet

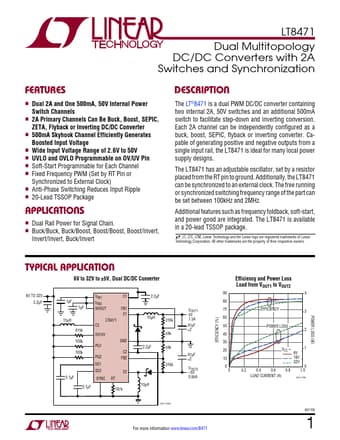

Additional preview pages of the LT8471 datasheet.

Product details

Description

The LT®8471 is a dual PWM DC/DC converter containing two internal 2A, 50V switches and an additional 500mA switch to facilitate step-down and inverting conversion.

Features

n Dual 2A and One 500mA, 50V Internal Power Switch Channels n 2A Primary Channels Can Be Buck, Boost, SEPIC, ZETA, Flyback or Inverting DC/DC Converter n 500mA Skyhook Channel Efficiently Generates Boosted Input Voltage n Wide Input Voltage Range of 2.6V to 50V n UVLO and OVLO Programmable on OV/UV Pin n Soft-Start Programmable for Each Channel n Fixed Frequency PWM (Set by RT Pin or Synchronized to External Clock) n Anti-Phase Switching Reduces Input Ripple n 20-Lead TSSOP Package Appli.
