LT8490 - Buck-Boost Battery Charge Controller

Product Overview

📥 Download Datasheet

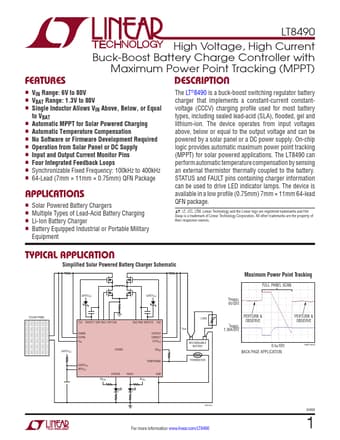

Datasheet preview – LT8490

Datasheet Details

Part number LT8490
Manufacturer Linear Technology Corporation
File Size 578.13 KB
Description Buck-Boost Battery Charge Controller
Datasheet download datasheet LT8490 Datasheet
Additional preview pages of the LT8490 datasheet.

Product details

Description

n VIN Range: 6V to 80V n VBAT Range: 1.3V to 80V n Single Inductor Allows VIN Above, Below, or Equal to VBAT n Automatic MPPT for Solar Powered Charging n Automatic Temperature Compensation n No Software or Firmware Development Required n Operation from Solar Panel or DC Supply n Input and Output Current Monitor Pins n Four Integrated Feedback Loops n Synchronizable Fixed Frequency: 100kHz to 400kHz n 64-Lead (7mm × 11mm × 0.75mm) QFN Package Applications n Solar Powered Battery Cha

Features
