LTC1054 - Switched Capacitor Voltage Converter

Datasheet Summary

Features

  • Available in Space Saving SO-8 Package s Output Current: 100mA (LT1054) 125mA (LT1054L) s Low Loss: 1.1V at 100mA s Operating Range:3.5V to 15V (LT1054) www. DataSheet4U. com 3.5V to 7V (LT1054L) s Reference and Error Amplifier for Regulation s External Shutdown s External Oscillator Synchronization s Can Be Paralleled s Pin Compatible with the LTC®1044/LTC7660 s.

📥 Download Datasheet

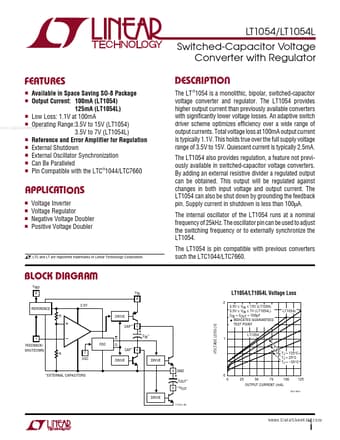

Datasheet preview – LTC1054

Datasheet Details

Part number LTC1054
Manufacturer Linear Technology Corporation
File Size 319.79 KB
Description Switched Capacitor Voltage Converter
Datasheet download datasheet LTC1054 Datasheet
Additional preview pages of the LTC1054 datasheet.

📁 Similar Datasheet

  • LTC1050 - Precision Zero-Drift Operational Amplifier (Linear Technology)
  • LTC1051 - Dual/Quad Precision Zero-Drift Operational Amplifiers (Linear)
  • LTC1052 - Zero-Drift Operational Amplifier (Linear Technology)
  • LTC1052 - Chopper-Stabilized Operational Amplifier (Texas Instruments)
  • LTC1052CS - Operational Amplifier (Linear Technology)
  • LTC1053 - Dual/Quad Precision Zero-Drift Operational Amplifiers (Linear Technology)
  • LTC1059 - High Performance Switched Capacitor Universal Filter (Linear Technology)
  • LTC1059CS - High Performance Switched Capacitor Universal Filter (Linear Technology)
  • LTC1000-S - Current Transducer (LEM)
  • LTC1000-SF - Current Transducer (LEM)
Other Datasheets by Linear Technology Corporation

Full PDF Text Transcription

Click to expand full text
LT1054/LT1054L Switched-Capacitor Voltage Converter with Regulator FEATURES Available in Space Saving SO-8 Package s Output Current: 100mA (LT1054) 125mA (LT1054L) s Low Loss: 1.1V at 100mA s Operating Range:3.5V to 15V (LT1054) www.DataSheet4U.com 3.5V to 7V (LT1054L) s Reference and Error Amplifier for Regulation s External Shutdown s External Oscillator Synchronization s Can Be Paralleled s Pin Compatible with the LTC®1044/LTC7660 s DESCRIPTIO The LT ®1054 is a monolithic, bipolar, switched-capacitor voltage converter and regulator. The LT1054 provides higher output current than previously available converters with significantly lower voltage losses. An adaptive switch driver scheme optimizes efficiency over a wide range of output currents.
