LT1020, Micropower Regulator/Comparator

U U .

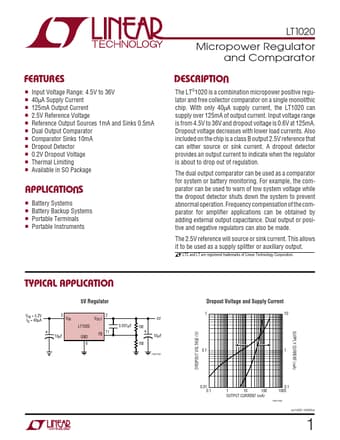

datasheet Preview Page 1 from Datasheet4u.com

LT1020_LinearTechnology.pdf

LT1020 Datasheet Preview — Preview of LT1020 PDF

Datasheet Details

Part number:

LT1020

Manufacturer:

Linear Technology

File Size:

266.53 KB

Description:

Micropower Regulator/Comparator

Features

* s Input Voltage Range: 4.5V to 36V s 40µA Supply Current s 125mA Output Current s 2.5V Reference Voltage s Reference Output Sources 1mA and Sinks 0.5mA s Dual Output Comparator s Comparator Sinks 10mA s Dropout Detector s 0.2V Dropout Voltage s Thermal Limiting s Available in SO Package U APPLICATIO

Applications

* can be obtained by adding external output capacitance. Dual output or positive and negative regulators can also be made. The 2.5V reference will source or sink current. This allows it to be used as a supply splitter or auxiliary output. , LTC and LT are registered trademarks of Linear Technology Cor
