LT1253 Low Cost Dual and Quad Video Amplifiers

📥 Download Datasheet  Datasheet Preview Page 1

Description

LT1253/LT1254 Low Cost Dual and Quad Video Amplifiers .

📥 Download Datasheet

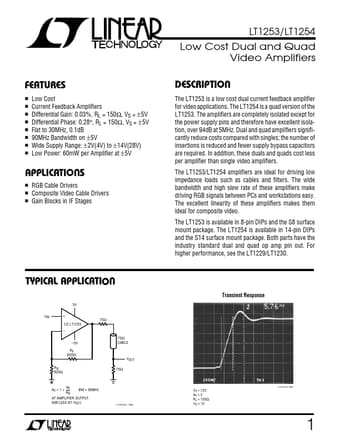

Preview of LT1253 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LT1253
Manufacturer
Linear Technology
File Size
246.57 KB
Datasheet
LT1253_LinearTechnology.pdf
Description
Low Cost Dual and Quad Video Amplifiers

Features

* s s s s s s s s DESCRIPTIO Low Cost Current Feedback Amplifiers Differential Gain: 0.03%, RL = 150Ω, VS = ± 5V Differential Phase: 0.28°, RL = 150Ω, VS = ± 5V Flat to 30MHz, 0.1dB 90MHz Bandwidth on ± 5V Wide Supply Range: ± 2V(4V) to ± 14V(28V) Low Power: 60mW per Amplifier at ± 5V The LT1253 is

Applications

* The LT1254 is a quad version of the LT1253. The amplifiers are completely isolated except for the power supply pins and therefore have excellent isolation, over 94dB at 5MHz. Dual and quad amplifiers significantly reduce costs compared with singles; the number of insertions is reduced and fewer sup
