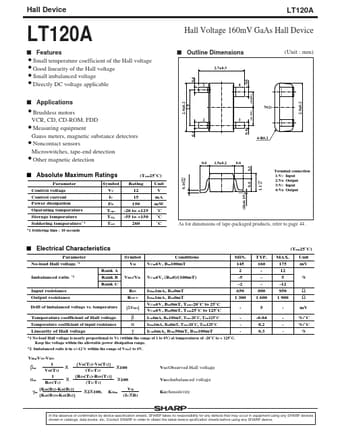

Hall Device
LT120A
LT120A
s Features ¡Small temperature coefficient of the Hall voltage ¡Good linearity of the Hall voltage ¡Small imbalanced voltage ¡Directly DC voltage applicable s Applications ¡Brushless motors VCR, CD, CD-ROM, FDD ¡Measuring equipment Gauss meters, magnetic substance detectors ¡Noncontact sensors Microswitches, tape-end detection ¡Other magnetic detection
s Absolute Maximum Ratings
Parameter Control voltage Control current Power dissipation Operating temperature Storage temperature Soldering temperature* 1
*1 Soldering time : 10 seconds
Hall Voltage 160mV GaAs Hall Device
s Outline Dimensions
2.7±0.3
0.4 0.6
(Unit : mm)
1
4
2.9±0.2 1.9
(0.85)
N 2
0.4
3
0.4
(0.95)
4-R0.2
0.6
1.5±0.2
0.6
0.3
0.16+0.10 -0.
