LT1203 - 150MHz Video Multiplexers

Datasheet Summary

Features

s s s s s s s s s s s s s.

Linear Technology

📥 Download Datasheet

Datasheet Details

Part number	LT1203
Manufacturer	Linear Technology
File Size	561.22 KB
Description	150MHz Video Multiplexers
Datasheet	LT1203 Datasheet
Additional preview pages of the LT1203 datasheet.

📁 Similar Datasheet

LT120 - Hall Voltage 160mV GaAs Hall Device (Sharp Electrionic Components)
LT1201-7 - 500 Watt AC-DC Converters (Power-One)
LT120A - Hall Voltage 160mV GaAs Hall Device (Sharp Electrionic Components)
LT1210 - SMD Wire Wound Ferrite Chip Inductors (Chilisin Electronics)
LT1210 - 35MHz Current Feedback Amplifier (Analog Devices)
LT1210X - 35MHz Current Feedback Amplifier (Analog Devices)
LT121AC25500 - Color TFT LCD Module (Toshiba)
LT121AC62000 - TFT LCD Module (Toshiba)
LT121DEE2P00 - TFT LCD Module (Toshiba)
LT121DEVKP00 - TFT LCD (Toshiba)

Other Datasheets by Linear Technology

LT1201 - Op Amps
LT1202 - Op Amps
LT1204 - 4-Input Video Multiplexer with 75MHz Current Feedback Amplifier
LT1205 - 150MHz Video Multiplexers
LT1206 - 250mA/60MHz Current Feedback Amplifier
LT1207 - Dual 250mA/60MHz Current Feedback Amplifier
LT1208 - Dual and Quad 45MHz/ 400V/us Op Amps
LT1209 - Dual and Quad 45MHz/ 400V/us Op Amps

Full PDF Text Transcription

Click to expand full text

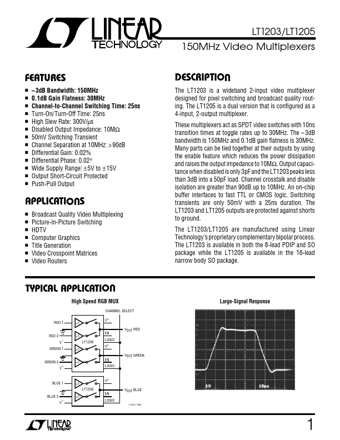

LT1203/LT1205 150MHz Video Multiplexers FEATURES s s s s s s s s s s s s s DESCRIPTIO – 3dB Bandwidth: 150MHz 0.1dB Gain Flatness: 30MHz Channel-to-Channel Switching Time: 25ns Turn-On/Turn-Off Time: 25ns High Slew Rate: 300V/µs Disabled Output Impedance: 10MΩ 50mV Switching Transient Channel Separation at 10MHz: > 90dB Differential Gain: 0.02% Differential Phase: 0.02° Wide Supply Range: ± 5V to ± 15V Output Short-Circuit Protected Push-Pull Output The LT1203 is a wideband 2-input video multiplexer designed for pixel switching and broadcast quality routing. The LT1205 is a dual version that is configured as a 4-input, 2-output multiplexer. These multiplexers act as SPDT video switches with 10ns transition times at toggle rates up to 30MHz. The – 3dB bandwidth is 150MHz and 0.

Published: Mar 22, 2005 |
