LT1205, 150MHz Video Multiplexers

LT1203/LT1205 150MHz Video Multiplexers .

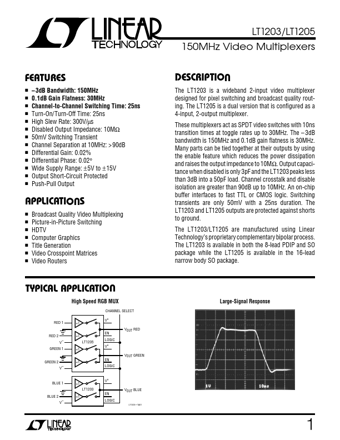

datasheet Preview Page 1 from Datasheet4u.com

LT1205_LinearTechnology.pdf

LT1205 Datasheet Preview — Preview of LT1205 PDF

Datasheet Details

Part number:

LT1205

Manufacturer:

Linear Technology

File Size:

561.22 KB

Description:

150MHz Video Multiplexers

Features

* s s s s s s s s s s s s s DESCRIPTIO
* 3dB Bandwidth: 150MHz 0.1dB Gain Flatness: 30MHz Channel-to-Channel Switching Time: 25ns Turn-On/Turn-Off Time: 25ns High Slew Rate: 300V/µs Disabled Output Impedance: 10MΩ 50mV Switching Transient Channel Separation at 10MHz: > 90dB Differential Gain
