LT1204 4-Input Video Multiplexer with 75MHz Current Feedback Amplifier

LT1204 4-Input Video Multiplexer with 75MHz Current Feedback Amplifier DESCRIPTIO The LT ®1204 is a 4-input video multiplexer designed to drive 75Ω cables and easily expand into larger routing systems. Wide bandwidth, high slew rate, and low differential gain and phase make the LT1204 ideal for broadcast quality signal routing. Channel separation and disable isolation are greater than 90dB up to 10MHz. The channelto-channel output switching transient is only 40mVP-P, with a 50ns duration, making.

LT1204 Features

* s s s s s s s s s s s s 0.1dB Gain Flatness > 30MHz Channel Separation at 10MHz: 90dB 40mV Switching Transient, Input Referred

* 3dB Bandwidth, AV = 2, RL = 150Ω: 75MHz Channel-to-Channel Switching Time: 120ns Easy to Expand for More Inputs Large Input Range: ± 6V 0.04% Differential Gain, R

LT1204 Datasheet (330.04 KB)

Preview of LT1204 PDF

Datasheet Details

Part number:

LT1204

Manufacturer:

Linear Technology

File Size:

330.04 KB

Description:

4-input video multiplexer with 75mhz current feedback amplifier.

📁 Related Datasheet

LT120 Hall Voltage 160mV GaAs Hall Device (Sharp Electrionic Components)

LT1201 Op Amps (Linear Technology)

LT1201-7 500 Watt AC-DC Converters (Power-One)

LT1202 Op Amps (Linear Technology)

LT1203 150MHz Video Multiplexers (Linear Technology)

LT1205 150MHz Video Multiplexers (Linear Technology)

LT1206 250mA/60MHz Current Feedback Amplifier (Linear Technology)

LT1207 Dual 250mA/60MHz Current Feedback Amplifier (Linear Technology)

LT1208 Dual and Quad 45MHz/ 400V/us Op Amps (Linear Technology)

LT1209 Dual and Quad 45MHz/ 400V/us Op Amps (Linear Technology)

TAGS

LT1204 4-Input Video Multiplexer with 75MHz Current Feedback Amplifier Linear Technology

Image Gallery

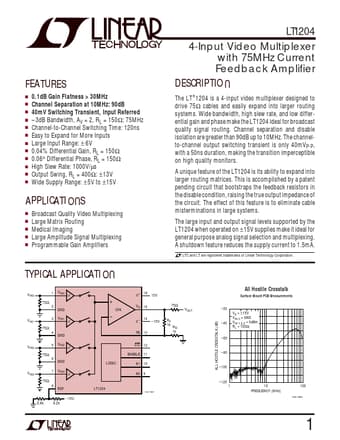

LT1204 Datasheet Preview Page 2 LT1204 Datasheet Preview Page 3
