LT1442M - Dot Matrix LED Unit for Outdoor Use (Lamp Type)

Datasheet Summary

Features

  • ¡No. of dots : 16!16dots ¡Outline dimensions : 160!160mm ¡Dot size : ø7.5mm ¡Dot pitch : 10mm ¡Radiation color : Yellow-green+Red(High-luminosity)dichromatic type ¡Driving method : Static drive LT1445M s Absolute Maximum Ratings (Ta=25˚C) s Electrical Characteristics Parameter Supply voltage for IC Supply voltage for LED IC current dissipation LED current dissipation.
  • 1 (VCC=5V,VLED=3V,Ta=25˚C) Parameter Symbol Rating Unit Supply voltage for IC V VCC 5.5 Supply voltage for LED V VLED 3.5.

📥 Download Datasheet

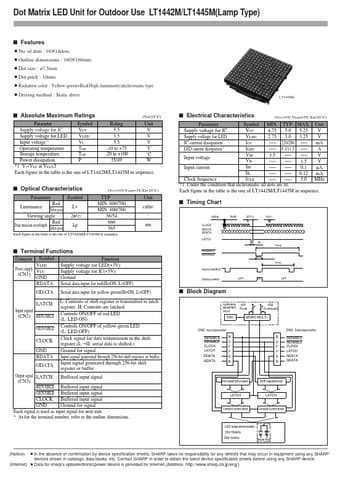

Datasheet preview – LT1442M

Datasheet Details

Part number LT1442M
Manufacturer Sharp Electrionic Components
File Size 286.68 KB
Description Dot Matrix LED Unit for Outdoor Use (Lamp Type)
Datasheet download datasheet LT1442M Datasheet
Additional preview pages of the LT1442M datasheet.

📁 Similar Datasheet

  • LT1441 - LED (Fema Electronics)
  • LT1441M - Dot Matrix LED (Sharp)
  • LT1413 - Single Supply/ Dual Precision Op Amp (Linear Technology)
  • LT1424-5 - Isolated Flyback Switching Regulator with 5V Output (Linear Technology)
  • LT1424-9 - Isolated Flyback Switching Regulator with 9V Output (Linear Technology)
  • LT1425 - Isolated Flyback Switching Regulator (Linear Technology)
  • LT1431 - Programmable Reference (Linear)
  • LT1432 - 5V High Efficiency Step-Down Switching Regulator Controller (Linear Technology)
  • LT1432-3.3 - 3.3V High Efficiency Step-Down Switching Regulator Controller (Linear Technology)
  • LT1457 - Dual/ Precision JFET Input Op Amp (Linear Technology)
Other Datasheets by Sharp Electrionic Components
  • LT1445M - Dot Matrix LED Unit for Outdoor Use (Lamp Type)
  • LT1447M - Dot Matrix LED Unit for Outdoor Use (Lamp Type)
  • LT1448MA - Dot Matrix LED Unit for Outdoor Use (Lamp Type/Water-proof Type)
  • LT140A - Hall Voltage 160mV Thin-Type Package GaAs Hall Device
  • LT140SA - Hall Voltage 160mV Thin-Type Package GaAs Hall Device
  • LT1451ED - Dot Matrix LED Unit for Indoor Use (Chip On Board Type)
  • LT1455M - Dot Matrix LED Unit for Indoor/Outdoor Use(Lamp Type)
  • LT1456M - Dot Matrix LED Unit for Indoor/Outdoor Use(Lamp Type)

Full PDF Text Transcription

Click to expand full text
Dot Matrix LED Unit for Outdoor Use LT1442M/LT1445M(Lamp Type) s Features ¡No. of dots : 16!16dots ¡Outline dimensions : 160!160mm ¡Dot size : ø7.5mm ¡Dot pitch : 10mm ¡Radiation color : Yellow-green+Red(High-luminosity)dichromatic type ¡Driving method : Static drive LT1445M s Absolute Maximum Ratings (Ta=25˚C) s Electrical Characteristics Parameter Supply voltage for IC Supply voltage for LED IC current dissipation LED current dissipation*1 (VCC=5V,VLED=3V,Ta=25˚C) Parameter Symbol Rating Unit Supply voltage for IC V VCC 5.5 Supply voltage for LED V VLED 3.5 Input voltage*1 V 5.5 VI Operating temperature -10 to +75 Topr ˚C Storage temperature -20 to +100 Tstg ˚C W Power dissipation 35/49 P *1 VI
