LT1445M - Dot Matrix LED Unit for Outdoor Use (Lamp Type)

Product Overview

Sharp Electrionic Components

Part number	LT1445M
Manufacturer	Sharp Electrionic Components
File Size	286.68 KB
Description	Dot Matrix LED Unit for Outdoor Use (Lamp Type)
Datasheet	LT1445M Datasheet

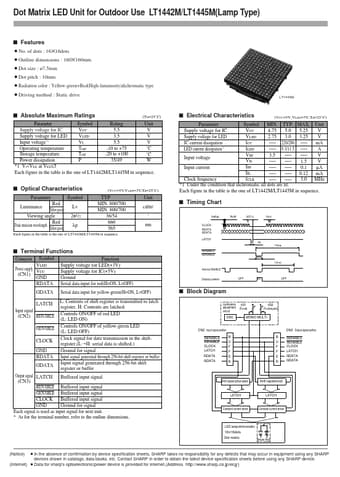

Additional preview pages of the LT1445M datasheet.

¡No. of dots : 16!16dots ¡Outline dimensions : 160!160mm ¡Dot size : ø7.5mm ¡Dot pitch : 10mm ¡Radiation color : Yellow-green+Red(High-luminosity)dichromatic type ¡Driving method : Static drive LT1445M s Absolute Maximum Ratings (Ta=25˚C) s Electrical Characteristics Parameter Supply voltage for IC Supply voltage for LED IC current dissipation LED current dissipation.
1 (VCC=5V,VLED=3V,Ta=25˚C) Parameter Symbol Rating Unit Supply voltage for IC V VCC 5.5 Supply voltage for LED V VLED 3.5.
