LT1451ED

Dot Matrix LED Unit for Indoor Use (Chip On Board Type)

LT1451ED Features

* ¡No. of dots : 16!16dots ¡Outline dimensions : 96!96mm ¡Dot size : ø5.0mm ¡Dot pitch : 6.0mm ¡Radiation color : Yellow-green+Red(dichromatic type) ¡Driving method : 1/16 duty dynamic drive LT1451ED s Absolute Maximum Ratings Parameter Supply voltage for IC Supply voltage for LED Input voltage LED c

LT1451ED Datasheet (208.42 KB)

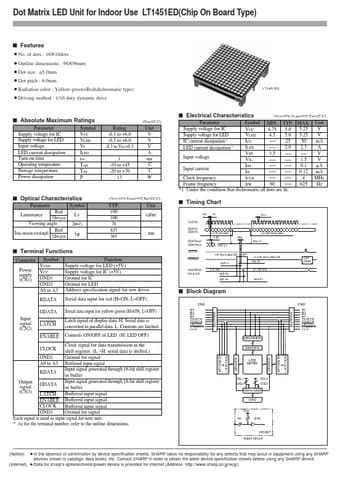

Preview of LT1451ED PDF

Datasheet Details

Part number:

LT1451ED

Manufacturer:

Sharp Electrionic Components

File Size:

208.42 KB

Description:

Dot matrix led unit for indoor use (chip on board type).
