LT1456M - Dot Matrix LED Unit for Indoor/Outdoor Use(Lamp Type)

Datasheet Summary

Features

  • ¡No. of dots : 16!16dots ¡Outline dimensions : 96.0!96.0mm ¡Dot size : ø5.0mm ¡Dot pitch : 6.0mm ¡Radiation color : Yellow-green+Red(High-luminosity)dichromatic type ¡Driving method : 1/8 duty dynamic drive LT1455M LT1456M s Absolute Maximum Ratings Parameter Supply voltage for IC Supply voltage for LED Input voltage Turn-on time Operating temperature Storage temperature Power dissipation Symbol VCC VLED VI tON Topr Tstg P Rating -0.3 to +6.0 -0.3 to +5.5 -0.3 to Vcc+0.3 1 -10 to +65 -20 to +85.

📥 Download Datasheet

Datasheet preview – LT1456M

Datasheet Details

Part number LT1456M
Manufacturer Sharp Electrionic Components
File Size 215.69 KB
Description Dot Matrix LED Unit for Indoor/Outdoor Use(Lamp Type)
Datasheet download datasheet LT1456M Datasheet
Additional preview pages of the LT1456M datasheet.

📁 Similar Datasheet

  • LT1457 - Dual/ Precision JFET Input Op Amp (Linear Technology)
  • LT1413 - Single Supply/ Dual Precision Op Amp (Linear Technology)
  • LT1424-5 - Isolated Flyback Switching Regulator with 5V Output (Linear Technology)
  • LT1424-9 - Isolated Flyback Switching Regulator with 9V Output (Linear Technology)
  • LT1425 - Isolated Flyback Switching Regulator (Linear Technology)
  • LT1431 - Programmable Reference (Linear)
  • LT1432 - 5V High Efficiency Step-Down Switching Regulator Controller (Linear Technology)
  • LT1432-3.3 - 3.3V High Efficiency Step-Down Switching Regulator Controller (Linear Technology)
  • LT1441 - LED (Fema Electronics)
  • LT1441M - Dot Matrix LED (Sharp)
Other Datasheets by Sharp Electrionic Components
  • LT1451ED - Dot Matrix LED Unit for Indoor Use (Chip On Board Type)
  • LT1455M - Dot Matrix LED Unit for Indoor/Outdoor Use(Lamp Type)
  • LT140A - Hall Voltage 160mV Thin-Type Package GaAs Hall Device
  • LT140SA - Hall Voltage 160mV Thin-Type Package GaAs Hall Device
  • LT1442M - Dot Matrix LED Unit for Outdoor Use (Lamp Type)
  • LT1445M - Dot Matrix LED Unit for Outdoor Use (Lamp Type)
  • LT1447M - Dot Matrix LED Unit for Outdoor Use (Lamp Type)
  • LT1448MA - Dot Matrix LED Unit for Outdoor Use (Lamp Type/Water-proof Type)

Full PDF Text Transcription

Click to expand full text

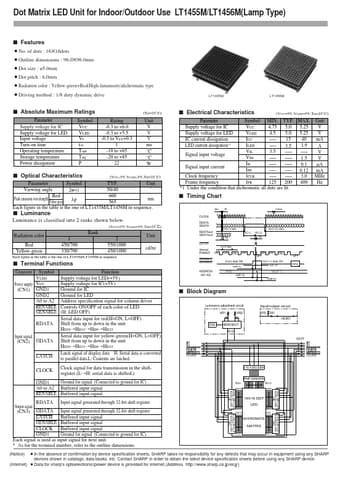

Dot Matrix LED Unit for Indoor/Outdoor Use LT1455M/LT1456M(Lamp Type) s Features ¡No. of dots : 16!16dots ¡Outline dimensions : 96.0!96.0mm ¡Dot size : ø5.0mm ¡Dot pitch : 6.0mm ¡Radiation color : Yellow-green+Red(High-luminosity)dichromatic type ¡Driving method : 1/8 duty dynamic drive LT1455M LT1456M s Absolute Maximum Ratings Parameter Supply voltage for IC Supply voltage for LED Input voltage Turn-on time Operating temperature Storage temperature Power dissipation Symbol VCC VLED VI tON Topr Tstg P Rating -0.3 to +6.0 -0.3 to +5.5 -0.3 to Vcc+0.
