LT1455M - Dot Matrix LED Unit for Indoor/Outdoor Use(Lamp Type)

Datasheet Summary

Features

  • ¡No. of dots : 16!16dots ¡Outline dimensions : 96.0!96.0mm ¡Dot size : ø5.0mm ¡Dot pitch : 6.0mm ¡Radiation color : Yellow-green+Red(High-luminosity)dichromatic type ¡Driving method : 1/8 duty dynamic drive LT1455M LT1456M s Absolute Maximum Ratings Parameter Supply voltage for IC Supply voltage for LED Input voltage Turn-on time Operating temperature Storage temperature Power dissipation Symbol VCC VLED VI tON Topr Tstg P Rating -0.3 to +6.0 -0.3 to +5.5 -0.3 to Vcc+0.3 1 -10 to +65 -20 to +85.

📥 Download Datasheet

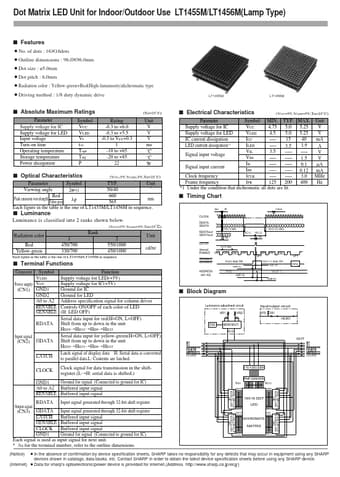

Datasheet preview – LT1455M
