LT1431 - Programmable Reference

Datasheet Summary

Description

The LT®1431 is an adjustable shunt voltage regulator with 100mA sink capability, 0.4% initial reference voltage tolerance and 0.3% typical temperature stability.

Features

  • n Guaranteed 0.4% Initial Voltage Tolerance n 0.1Ω Typical Dynamic Output Impedance n Fast Turn-On n Sink Current Capability, 1mA to 100mA n Low Reference Pin Current n Available in J8, N8, S8 or 3-Lead TO-92 Z Packages.

📥 Download Datasheet

Datasheet preview – LT1431

Datasheet Details

Part number LT1431
Manufacturer Linear
File Size 213.31 KB
Description Programmable Reference
Datasheet download datasheet LT1431 Datasheet

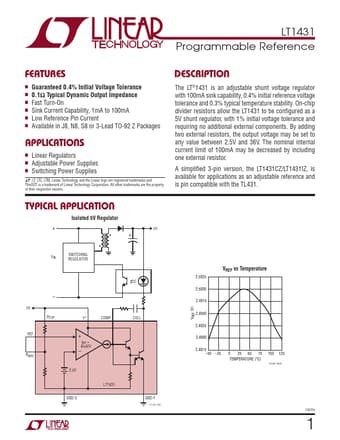

Additional preview pages of the LT1431 datasheet.
