LT1413 - Single Supply/ Dual Precision Op Amp

Datasheet Summary

Features

  • Single Supply Operation: s Input Goes Below Ground s Output Swings to Ground Sinking Current s No Pull-Down Resistors Needed s Phase Reversal Protection At 5V, 0V Low Cost Grade Specifications: s 280µV Max Offset Voltage s 380µV Max in S8 Package s 0.8nA Max Offset Current s 480µA Max Supply Current per Amplifier s 0.5µV/°C Drift s 1.4 Million Voltage Gain s 950kHz Gain-Bandwidth Product s 0.55µV P-P, 0.1Hz to 10Hz Noise.

📥 Download Datasheet

Datasheet preview – LT1413

Datasheet Details

Part number LT1413
Manufacturer Linear Technology
File Size 272.13 KB
Description Single Supply/ Dual Precision Op Amp
Datasheet download datasheet LT1413 Datasheet
Additional preview pages of the LT1413 datasheet.

📁 Similar Datasheet

  • LT140A - Hall Voltage 160mV Thin-Type Package GaAs Hall Device (Sharp Electrionic Components)
  • LT140SA - Hall Voltage 160mV Thin-Type Package GaAs Hall Device (Sharp Electrionic Components)
  • LT1431 - Programmable Reference (Linear)
  • LT1441 - LED (Fema Electronics)
  • LT1441M - Dot Matrix LED (Sharp)
  • LT1442M - Dot Matrix LED Unit for Outdoor Use (Lamp Type) (Sharp Electrionic Components)
  • LT1445M - Dot Matrix LED Unit for Outdoor Use (Lamp Type) (Sharp Electrionic Components)
  • LT1447M - Dot Matrix LED Unit for Outdoor Use (Lamp Type) (Sharp Electrionic Components)
  • LT1448MA - Dot Matrix LED Unit for Outdoor Use (Lamp Type/Water-proof Type) (Sharp Electrionic Components)
  • LT1451ED - Dot Matrix LED Unit for Indoor Use (Chip On Board Type) (Sharp Electrionic Components)
Other Datasheets by Linear Technology
  • LT1424-5 - Isolated Flyback Switching Regulator with 5V Output
  • LT1424-9 - Isolated Flyback Switching Regulator with 9V Output
  • LT1425 - Isolated Flyback Switching Regulator
  • LT1432 - 5V High Efficiency Step-Down Switching Regulator Controller
  • LT1432-3.3 - 3.3V High Efficiency Step-Down Switching Regulator Controller
  • LT1457 - Dual/ Precision JFET Input Op Amp
  • LT1460 - 2.5V Reference
  • LT1460-10 - Micropower Precision Series Reference

Full PDF Text Transcription

Click to expand full text

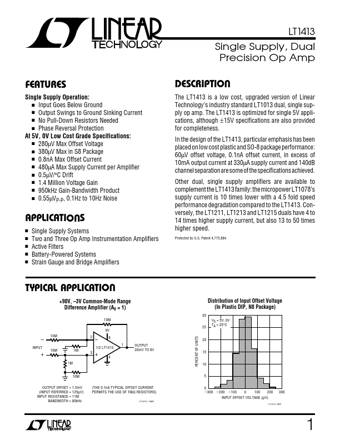

LT1413 Single Supply, Dual Precision Op Amp FEATURES Single Supply Operation: s Input Goes Below Ground s Output Swings to Ground Sinking Current s No Pull-Down Resistors Needed s Phase Reversal Protection At 5V, 0V Low Cost Grade Specifications: s 280µV Max Offset Voltage s 380µV Max in S8 Package s 0.8nA Max Offset Current s 480µA Max Supply Current per Amplifier s 0.5µV/°C Drift s 1.4 Million Voltage Gain s 950kHz Gain-Bandwidth Product s 0.55µV P-P, 0.1Hz to 10Hz Noise DESCRIPTIO The LT1413 is a low cost, upgraded version of Linear Technology’s industry standard LT1013 dual, single supply op amp. The LT1413 is optimized for single 5V applications, although ± 15V specifications are also provided for completeness.
