LT1356 - Dual and Quad 12MHz/ 400V/us Op Amps

This page provides the datasheet information for the LT1356, a member of the LT1 Dual and Quad 12MHz/ 400V/us Op Amps family.

Features

  • s s s s s s s s s s s s s s s.

📥 Download Datasheet

Datasheet preview – LT1356

📁 Similar Datasheet

  • LT135 - Hall Voltage 240mV GaAs Hall Device (Sharp Electrionic Components)
  • LT135A - Hall Voltage 240mV GaAs Hall Device (Sharp Electrionic Components)
  • LT1304 - MICROPOWER DC/DC CONVERTERS (UTC)
  • LT1304-3.3V - MICROPOWER DC/DC CONVERTERS (UTC)
  • LT1304-5.0V - MICROPOWER DC/DC CONVERTERS (UTC)
  • LT1308A - DC/DC Converters (Linear)
  • LT1308B - DC/DC Converters (Linear)
  • LT133DEVJK00 - Display (Toshiba)
  • LT133EE09500 - TFT LCD Module (Toshiba)
  • LT133EE10000 - TFT LCD Module (Toshiba)
Other Datasheets by Linear Technology
  • LT1351 - 250uA/ 3MHz/ 200V/us Operational Amplifier
  • LT1352 - Dual and Quad 250uA/ 3MHz/ 200V/us Operational Amplifiers
  • LT1353 - Dual and Quad 250uA/ 3MHz/ 200V/us Operational Amplifiers
  • LT1354 - 12MHz/ 400V/us Op Amp
  • LT1355 - Dual and Quad 12MHz/ 400V/us Op Amps
  • LT1357 - 25MHz/ 600V/us Op Amp
  • LT1358 - Dual and Quad 25MHz/ 600V/us Op Amps
  • LT1359 - Dual and Quad 25MHz/ 600V/us Op Amps

Full PDF Text Transcription

Click to expand full text

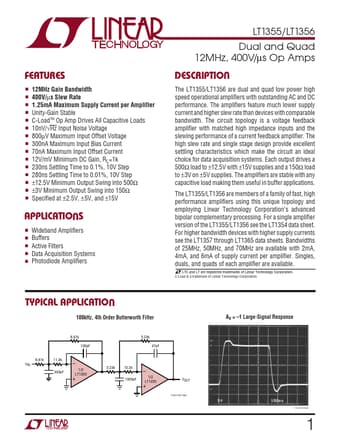

LT1355/LT1356 Dual and Quad 12MHz, 400V/µs Op Amps FEATURES s s s s s s s s s s s s s s s DESCRIPTIO 12MHz Gain Bandwidth 400V/µs Slew Rate 1.25mA Maximum Supply Current per Amplifier Unity-Gain Stable C-LoadTM Op Amp Drives All Capacitive Loads 10nV/√Hz Input Noise Voltage 800µV Maximum Input Offset Voltage 300nA Maximum Input Bias Current 70nA Maximum Input Offset Current 12V/mV Minimum DC Gain, RL=1k 230ns Settling Time to 0.1%, 10V Step 280ns Settling Time to 0.01%, 10V Step ±12.5V Minimum Output Swing into 500Ω ±3V Minimum Output Swing into 150Ω Specified at ±2.5V, ±5V, and ±15V The LT1355/LT1356 are dual and quad low power high speed operational amplifiers with outstanding AC and DC performance.
