LT1803, Rail-to-Rail Input and Output Op Amps

+ * U U LT1803/LT1804/LT1805 Single/Dual/Quad 100V/µs, 85MHz, Rail-to-Rail Input and Output Op Amps .

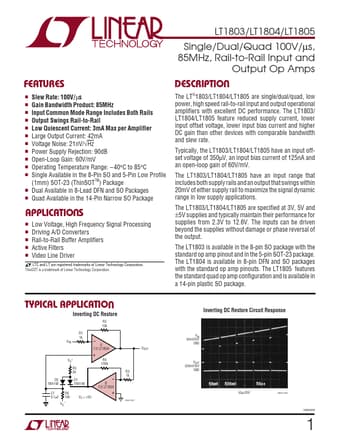

datasheet Preview Page 1 from Datasheet4u.com

LT1803-LinearTechnology.pdf

LT1803 Datasheet Preview — Preview of LT1803 PDF

Datasheet Details

Part number:

LT1803

Manufacturer:

Linear Technology

File Size:

393.90 KB

Description:

Rail-to-Rail Input and Output Op Amps

Features

* s Slew Rate: 100V/µs s Gain Bandwidth Product: 85MHz s Input Common Mode Range Includes Both Rails s Output Swings Rail-to-Rail s Low Quiescent Current: 3mA Max per Amplifier s Large Output Current: 42mA s Voltage Noise: 21nV/√Hz s Power Supply Rejection: 90dB s Open-Loop Gain: 60V/mV s Operating Te

Applications

* The LT1803/LT1804/LT1805 are specified at 3V, 5V and ±5V supplies and typically maintain their performance for supplies from 2.3V to 12.6V. The inputs can be driven beyond the supplies without damage or phase reversal of the output. The LT1803 is available in the 8-pin SO package with the standard
