LT1804, LT1803 Rail-to-Rail Input and Output Op Amps

Linear Technology

Description

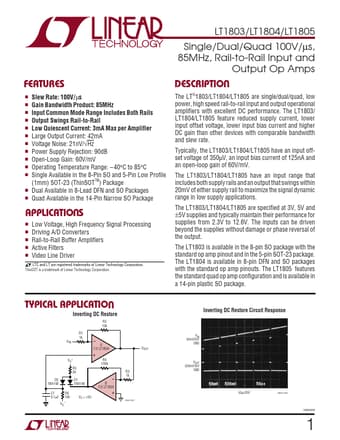

+ * U U LT1803/LT1804/LT1805 Single/Dual/Quad 100V/µs, 85MHz, Rail-to-Rail Input and Output Op Amps .

📥 Download Datasheet

LT1804 Datasheet Preview — This datasheet PDF includes multiple part numbers: LT1804, LT1803. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LT1804, LT1803
Manufacturer: Linear Technology
File Size: 393.90 KB
Datasheet: LT1803-LinearTechnology.pdf
Description: Rail-to-Rail Input and Output Op Amps
Note: This datasheet PDF includes multiple part numbers: LT1804, LT1803.
Please refer to the document for exact specifications by model.

Features

* s Slew Rate: 100V/µs s Gain Bandwidth Product: 85MHz s Input Common Mode Range Includes Both Rails s Output Swings Rail-to-Rail s Low Quiescent Current: 3mA Max per Amplifier s Large Output Current: 42mA s Voltage Noise: 21nV/√Hz s Power Supply Rejection: 90dB s Open-Loop Gain: 60V/mV s Operating Te

Applications

* The LT1803/LT1804/LT1805 are specified at 3V, 5V and ±5V supplies and typically maintain their performance for supplies from 2.3V to 12.6V. The inputs can be driven beyond the supplies without damage or phase reversal of the output. The LT1803 is available in the 8-pin SO package with the standard
