LT3013B - 4V to 80V Low Dropout Micropower Linear Regulator

LT3013B Description

www.DataSheet4U.com LT3013B 250mA, 4V to 80V Low Dropout Micropower Linear Regulator with PWRGD .

LT3013B Features

* DESCRIPTIO Wide Input Voltage Range: 4V to 80V Low Quiescent Current: 65µA Low Dropout Voltage: 400mV Output Current: 250mA No Protection Diodes Needed Adjustable Output from 1.24V to 60V Stable with 3.3µF Output Capacitor Sta

LT3013B Applications

* Automotive Applications TYPICAL APPLICATIO IN VIN 5.4V TO 80V 1µF 1.6M PWRGD GND ADJ CT OUT LT3013B 400 5V Supply DROPOUT VOLTAGE (mV) VOUT 5V 250mA 3.3µF 350 300 250 200 150 100 50 0 0 50 100 150 200 OUTPUT CURRENT (mA) 250 3013 TA02 750k 249k 3013 TA01 1000pF U Dropout Voltage 3013bfa U

📥 Download Datasheet

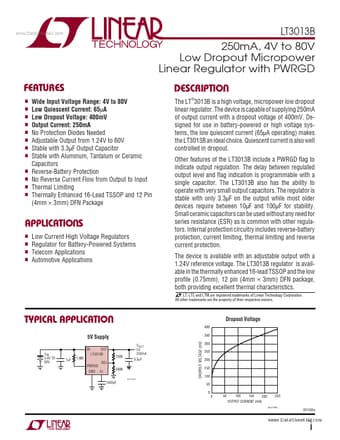

Preview of LT3013B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LT3013B
Manufacturer
Linear Technology
File Size
250.26 KB
Datasheet
LT3013B_LinearTechnology.pdf
Description
4V to 80V Low Dropout Micropower Linear Regulator
