LT3020-1.2, LT3020, Very Low Dropout Linear Regulator

LT3020/LT3020-1.2/ LT3020-1.5/LT3020-1.8 100mA, Low Voltage, Very Low Dropout Linear Regulator U U .

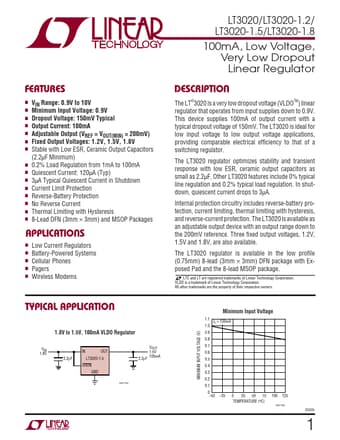

datasheet Preview Page 1 from Datasheet4u.com

LT3020_LinearTechnology.pdf

LT3020-1.2 Datasheet Preview — This datasheet PDF includes multiple part numbers: LT3020-1.2, LT3020. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LT3020-1.2, LT3020

Manufacturer:

Linear Technology

File Size:

190.63 KB

Description:

Very Low Dropout Linear Regulator

Note:

This datasheet PDF includes multiple part numbers: LT3020-1.2, LT3020.
Please refer to the document for exact specifications by model.

Features

* VIN Range: 0.9V to 10V
* Minimum Input Voltage: 0.9V
* Dropout Voltage: 150mV Typical
* Output Current: 100mA
* Adjustable Output (VREF = VOUT(MIN) = 200mV)
* Fixed Output Voltages: 1.2V, 1.5V, 1.8V
* Stable with Low ESR, Ceramic Output Capacitors (2.2µF Minimum)
