LT3021-x.x, LT3021 - Very Low Dropout Linear Regulator

LT3021-x.x Description

www.DataSheet4U.com LT3021/LT3021-1.2/ LT3021-1.5/LT3021-1.8 500mA, Low Voltage, Very Low Dropout Linear Regulator .

LT3021-x.x Features

* DESCRIPTIO VIN Range: 0.9V to 10V Dropout Voltage: 160mV Typical Output Current: 500mA Adjustable Output (VREF = VOUT(MIN) = 200mV) Fixed Output Voltages: 1.2V, 1.5V, 1.8V Stable with Low ESR, Ceramic Output Capaci

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LT3021-x.x, LT3021. Please refer to the document for exact specifications by model.

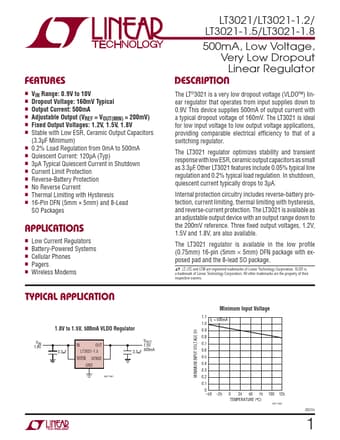

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LT3021-x.x, LT3021
Manufacturer
Linear Technology
File Size
180.14 KB
Datasheet
LT3021_LinearTechnology.pdf
Description
Very Low Dropout Linear Regulator
Note
This datasheet PDF includes multiple part numbers: LT3021-x.x, LT3021.
Please refer to the document for exact specifications by model.
