LT4256-1

(LT4256-1/-2) Positive High Voltage Hot Swap Controllers

LT4256-1 Features

* Allows Safe Board Insertion and Removal from a Live Backplane

* Controls Supply Voltage from 10.8V to 80V

* Foldback Current Limiting

* Overcurrent Fault Detection

* Drives an External N-Channel MOSFET

* Programmable Supply Voltage Power-Up Rate

* Undervoltage Protectio

LT4256-1 Datasheet (182.98 KB)

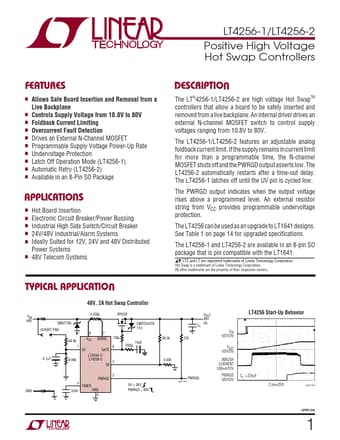

Preview of LT4256-1 PDF

Datasheet Details

Part number:

LT4256-1

Manufacturer:

Linear Technology

File Size:

182.98 KB

Description:

(lt4256-1/-2) positive high voltage hot swap controllers.
