LT4256-3

Positive High Voltage Hot Swap Controller

LT4256-3 Features

* Allows Safe Board Insertion and Removal from a Live Backplane

* Controls Supply Voltage from 10.8V to 80V

* Foldback Current Limiting

* Open Circuit and Overcurrent Fault Detect

* Drives an External N-Channel MOSFET

* Automatic Retry or Latched Off Operation After Overcurre

LT4256-3 Datasheet (230.72 KB)

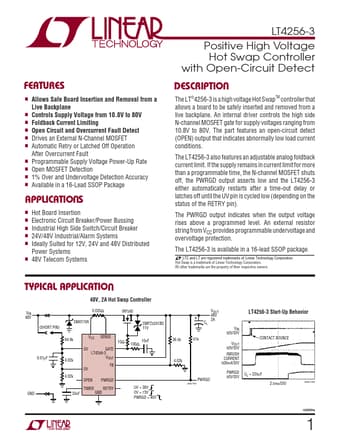

Preview of LT4256-3 PDF

Datasheet Details

Part number:

LT4256-3

Manufacturer:

Linear Technology

File Size:

230.72 KB

Description:

Positive high voltage hot swap controller.
