LT4320-1, LT4320 Datasheet - Linear Technology

LT4320-1 Ideal Diode Bridge Controller

The LT®4320/LT4320-1 are ideal diode bridge controllers that drive four N-channel MOSFETs, supporting voltage rectification from DC to 600Hz typical. By maximizing available voltage and reducing power dissipation (see thermograph comparison below), the ideal diode bridge simplifies power supply desi.

LT4320-1 Features

* Maximizes Power Efficiency n Eliminates Thermal Design Problems n DC to 600Hz n 9V to 72V Operating Voltage Range n I = 1.5mA (Typical) Q n Maximizes Available Voltage n Available in 8-Lead (3mm × 3mm) DFN, 12-Lead MSOP and 8-Lead PDIP Packages n LT4320/LT4320-1 Ideal Diode Bridge Controller

LT4320-LinearTechnology.pdf

This datasheet PDF includes multiple part numbers: LT4320-1, LT4320. Please refer to the document for exact specifications by model.

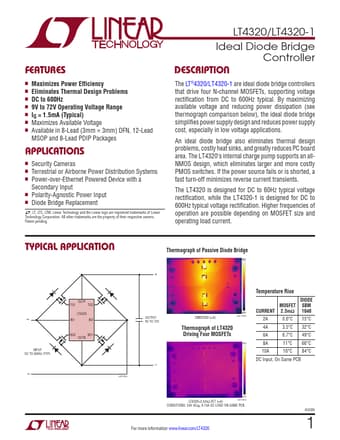

LT4320-1 Datasheet Preview Page 2 LT4320-1 Datasheet Preview Page 3

Datasheet Details

Part number:

LT4320-1, LT4320

Manufacturer:

Linear Technology

File Size:

941.50 KB

Description:

Ideal diode bridge controller.

Note:

This datasheet PDF includes multiple part numbers: LT4320-1, LT4320.
Please refer to the document for exact specifications by model.
