LT4320

Ideal Diode Bridge Controller

LT4320 Features

* Maximizes Power Efficiency n Eliminates Thermal Design Problems n DC to 600Hz n 9V to 72V Operating Voltage Range n I = 1.5mA (Typical) Q n Maximizes Available Voltage n Available in 8-Lead (3mm × 3mm) DFN, 12-Lead MSOP and 8-Lead PDIP Packages n LT4320/LT4320-1 Ideal Diode Bridge Controller

LT4320 General Description

The LT®4320/LT4320-1 are ideal diode bridge controllers that drive four N-channel MOSFETs, supporting voltage rectification from DC to 600Hz typical. By maximizing available voltage and reducing power dissipation (see thermograph comparison below), the ideal diode bridge simplifies power supply desi.

LT4320 Datasheet (941.50 KB)

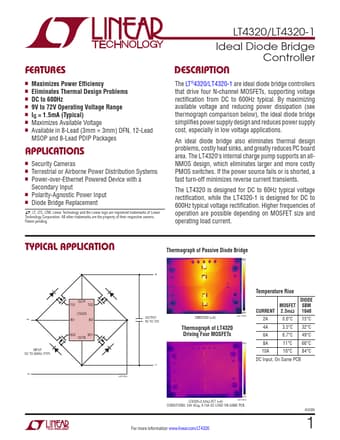

Preview of LT4320 PDF

Datasheet Details

Part number:

LT4320

Manufacturer:

Linear Technology

File Size:

941.50 KB

Description:

Ideal diode bridge controller.
