LT8602

42V Quad Monolithic Synchronous Step-Down Regulator

Linear Technology

LT8602 Features

* n Flexible Power Supply System Providing Four Outputs with a Wide Input Range n Two High Voltage Synchronous Buck Regulators: 3V to 42V Input Voltage Range Output Currents Up to 2.5A and 1.5A High Efficiency Up to 93% n Two Low Voltage Synchronous Buck Regulators: 2.6V to 5.5V Input Voltage

LT8602 General Description

The LT®8602 is a quad channel, current mode, monolithic buck switching regulator with a programmable power-on reset. All regulators are synchronized to a single oscillator with an adjustable frequency from 250kHz to 2.2MHz. The LT8602 can be configured for micropower Burst Mode operation or pulse-sk.

LT8602 Datasheet (1.84 MB)

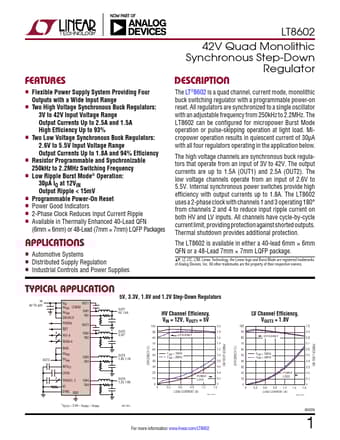

LT8602 Datasheet Preview — Preview of LT8602 PDF

Datasheet Details

Part number:

LT8602

Manufacturer:

Linear Technology

File Size:

1.84 MB

Description:

42v quad monolithic synchronous step-down regulator.
