LT8619-5

1.2A Synchronous Monolithic Buck Regulator

LT8619-5 Features

* nn Wide Input Voltage Range: 3V to 60V nn Fast Minimum Switch-On Time: 30ns nn Ultralow Quiescent Current Burst Mode Operation: nn 6μA IQ Regulating 12VIN to 3.3VOUT nn 10mVP-P Output Ripple at No Load nn Synchronizable/Programmable Fixed Frequency Forced Continuous Mode Operation: 300kHz to 2.2MHz

LT8619-5 General Description

The LT®8619 is a compact, high efficiency, high speed synchronous monolithic step-down switchi.

LT8619-5 Datasheet (2.01 MB)

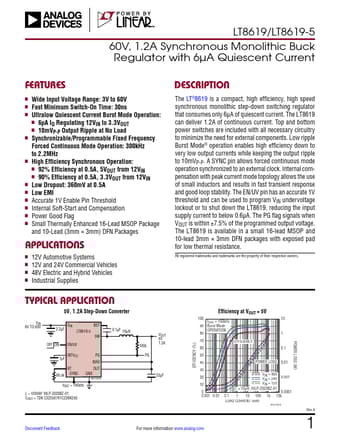

Preview of LT8619-5 PDF

Datasheet Details

Part number:

LT8619-5

Manufacturer:

Linear Technology

File Size:

2.01 MB

Description:

1.2a synchronous monolithic buck regulator.
