LTC1386 Datasheet, Transceiver, Linear Technology

LTC1386 Features

  • Transceiver s s s s s s s DESCRIPTIO s s Operates from a Single 3.3V Supply Low Supply Current: ICC = 200µA ESD Protection Over ±10kV Available in 16-Pin SOIC Narrow Package Uses Small Capacito

PDF File Details

Part number:

LTC1386

Manufacturer:

Linear Technology

File Size:

210.61kb

Download:

📄 Datasheet

Description:

3.3v low power eia/tia562 transceiver. U Dimensions in inches (millimeters) unless otherwise noted. N Package 16-Lead Plastic DIP 0.770 (19.558) MAX 16 15 14 13 12 11 10 9

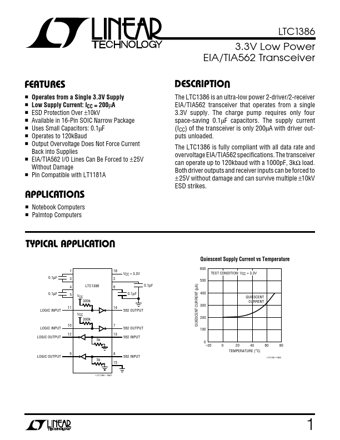

Datasheet Preview: LTC1386 📥 Download PDF (210.61kb)
Page 2 of LTC1386 Page 3 of LTC1386

LTC1386 Application

  • Applications N Paralleling Power Supply Generator with Common Storage Capacitors 1 0.1µF 3 4 0.1µF 5 11 VCC 300k LOGIC INPUT LOGIC OUTPUT 10 12 5k
