LTC1433, LTC Datasheet - Linear Technology

LTC1433 450mA/ Low Noise Current Mode Step-Down DC/DC Converters

The LTC®1433/LTC1434 are monolithic pulse width modulated step-down DC/DC converters. By utilizing current mode switching techniques, they provide excellent AC and DC load and line regulation. Both devices operate at a fixed frequency with the LTC1434 phase-lockable to an external clock signal. Both.

LTC1433 Features

* s s s s s s s s s s s s High Efficiency: Up to 93% Constant Frequency Adaptive PowerTM Operation Input Voltage Range: 3V to 13.5V Internal 0.6Ω Power Switch (VIN = 10V) Low Dropout Operation: 100% Duty Cycle Low-Battery Detector Internal Power-On Reset Timer Current Mode Operation for Excellent Li

LTC-1433.pdf

This datasheet PDF includes multiple part numbers: LTC1433, LTC. Please refer to the document for exact specifications by model.

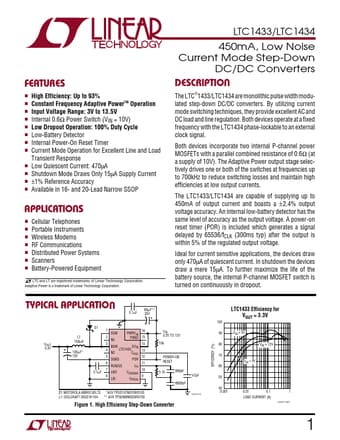

LTC1433 Datasheet Preview Page 2 LTC1433 Datasheet Preview Page 3

Datasheet Details

Part number:

LTC1433, LTC

Manufacturer:

Linear Technology

File Size:

379.38 KB

Description:

450ma/ low noise current mode step-down dc/dc converters.

Note:

This datasheet PDF includes multiple part numbers: LTC1433, LTC.
Please refer to the document for exact specifications by model.
