LTC2282 Datasheet, Adc, Linear Technology

LTC2282 Features

  • Adc n Integrated Dual 12-Bit ADCs n Sample Rate: 105Msps n Single 3V Supply (2.85V to 3.4V) n Low Power: 540mW n 70.1dB SNR, 88dB SFDR n 110dB Channel Isolation at 100MHz n Flexible Input:

PDF File Details

Part number:

LTC2282

Manufacturer:

Linear Technology

File Size:

463.88kb

Download:

📄 Datasheet

Description:

105msps low power 3v adc. The LTC®2282 is a 12-bit 105Msps, low power dual 3V A/D converter designed for digitizing high frequency, wide dynamic range signals.

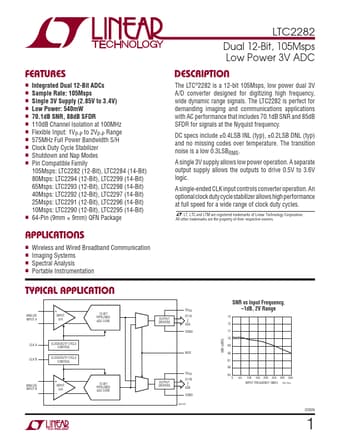

Datasheet Preview: LTC2282 📥 Download PDF (463.88kb)
Page 2 of LTC2282 Page 3 of LTC2282

LTC2282 Application

  • Applications n Wireless and Wired Broadband Communication n Imaging Systems n Spectral Analysis n Portable Instrumentation LTC2282 Dual 12-Bit, 105
