LTC2602 - Rail-to-rail DACs

Product Overview

Linear Technology

Part number	LTC2602
Manufacturer	Linear Technology
File Size	300.94 KB
Description	Rail-to-rail DACs
Datasheet	LTC2602 Datasheet
Note	This datasheet PDF includes multiple part numbers: LTC2602, LTC2622. Please refer to the document for exact specifications by model.

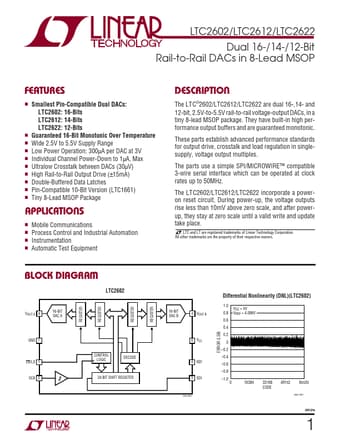

Additional preview pages of the LTC2602 datasheet.

Smallest Pin-Compatible Dual DACs: LTC2602: 16-Bits LTC2612: 14-Bits LTC2622: 12-Bits.
Guaranteed 16-Bit Monotonic Over Temperature.
Wide 2.5V to 5.5V Supply Range.
Low Power Operation: 300µA per DAC at 3V.
Individual Channel Power-Down to 1µA, Max.
Ultralow Crosstalk between DACs (30µV).
High Rail-to-Rail Output Drive (±15mA).
Double-Buffered Data Latches.
Pin-Compatible 10-Bit Version (LTC1661).
Tiny 8-Lead MSOP Package U.
