LTC2604 - Rail-to-rail Voltage Output DACs

Product Overview

Linear Technology

Part number	LTC2604
Manufacturer	Linear Technology
File Size	301.39 KB
Description	Rail-to-rail Voltage Output DACs
Datasheet	LTC2604 Datasheet
Note	This datasheet PDF includes multiple part numbers: LTC2604, LTC2624. Please refer to the document for exact specifications by model.

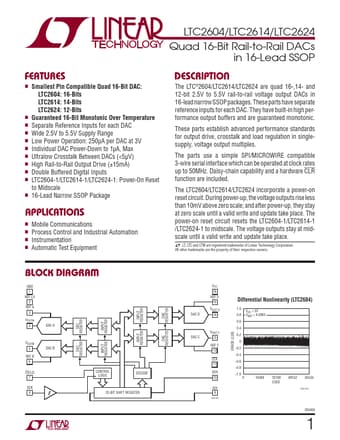

Additional preview pages of the LTC2604 datasheet.

The LTC®2604/LTC2614/LTC2624 are quad 16-,14- and 12-bit 2.5V to 5.5V rail-to-rail voltage output DACs in 16-lead narrow SSOP packages.

n Smallest Pin Compatible Quad 16-Bit DAC: LTC2604: 16-Bits LTC2614: 14-Bits LTC2624: 12-Bits n Guaranteed 16-Bit Monotonic Over Temperature n Separate Reference Inputs for each DAC n Wide 2.5V to 5.5V Supply Range n Low Power Operation: 250μA per DAC at 3V n Individual DAC Power-Down to 1μA, Max n Ultralow Crosstalk Between DACs (.
