LTC2946 - Charge and Energy Monitor

Product Overview

📥 Download Datasheet

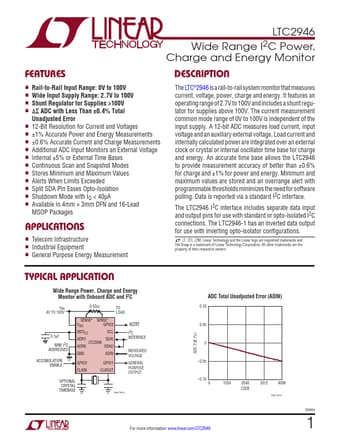

Datasheet preview – LTC2946

Datasheet Details

Part number LTC2946
Manufacturer Linear Technology
File Size 444.59 KB
Description Charge and Energy Monitor
Datasheet download datasheet LTC2946 Datasheet
Additional preview pages of the LTC2946 datasheet.

Product details

Description

n Rail-to-Rail Input Range: 0V to 100V n Wide Input Supply Range: 2.7V to 100V n Shunt Regulator for Supplies >100V n Δ∑ ADC with Less Than ±0.4% Total Unadjusted Error n 12-Bit Resolution for Current and Voltages n ±1% Accurate Power and Energy Measurements n ±0.6% Accurate Current and Charge Measurements n Additional ADC Input Monitors an External Voltage n Internal ±5% or External Time Bases n Continuous Scan and Snapshot Modes n Stores Minimum and Maximum Values n Alerts When Limit
