LTC2941-1 - 1A I2C Battery Gas Gauge

Datasheet Summary

Description

The LTC®2941-1 measures battery charge state in batterypowered handheld PC and portable product applications.

Its operating range is perfectly suited for single cell Li-Ion batteries.

Features

  • n Indicates Accumulated Battery Charge and Discharge n SMBus/I2C Interface n Integrated 50mΩ High Side Sense Resistor n ±1A Sense Current Range n High Accuracy Analog Integration n 1% Charge Accuracy n Configurable Alert Output/Charge Complete Input n 2.7V to 5.5V Operating Range n Quiescent Current Less than 100µA n Small 6-Pin 2mm × 3mm DFN package.

📥 Download Datasheet

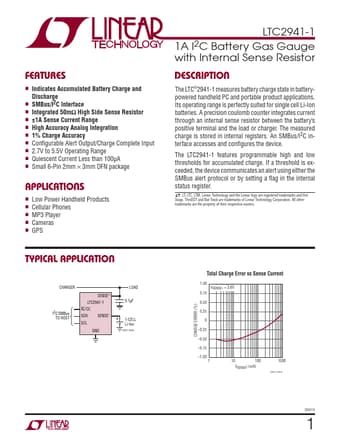

Datasheet preview – LTC2941-1

Datasheet Details

Part number LTC2941-1
Manufacturer Linear
File Size 196.18 KB
Description 1A I2C Battery Gas Gauge
Datasheet download datasheet LTC2941-1 Datasheet
