LTC2991 Datasheet - Linear

LTC2991 Temperature Sensor and Dual Voltage Monitor

The LTC®2991 is used to monitor system temperatures, voltages and currents. Through the I2C serial interface, the eight monitors can individually measure supply voltages and can be paired for differential measurements of current sense resistors or temperature sensing transistors. Additional measurem.

LTC2991 Features

* n Measures Voltage, Current, Temperature n Measures Four Remote Diode Temperatures n 0.7°C (Typ) Accuracy, 0.06°C Resolution n 1°C (Typ) Internal Temperature Sensor n Series Resistance Cancellation n 14-Bit ADC Measures Voltage/Current n PWM Temperature Output n 3V to 5.5V Supply Operating V

LTC2991_Linear.pdf

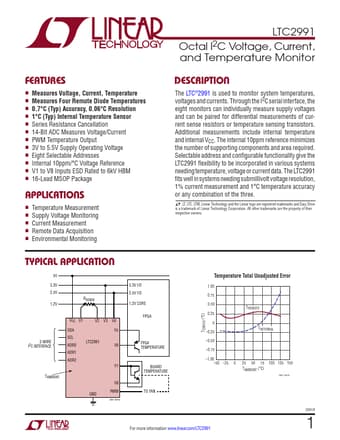

Preview of LTC2991 PDF
LTC2991 Datasheet Preview Page 2 LTC2991 Datasheet Preview Page 3

Datasheet Details

Part number:

LTC2991

Manufacturer:

Linear

File Size:

756.32 KB

Description:

Temperature sensor and dual voltage monitor.
