LTC2992 - Dual Wide Range Power Monitor

Product Overview

Analog Devices

Part number	LTC2992
Manufacturer	Analog Devices
File Size	562.62 KB
Description	Dual Wide Range Power Monitor
Datasheet	LTC2992 Datasheet

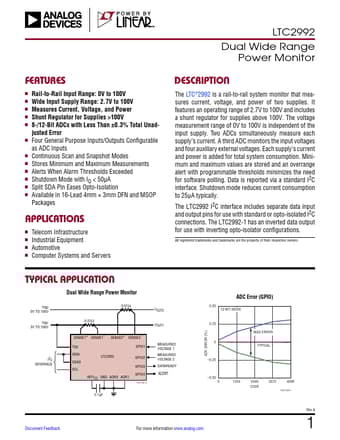

Additional preview pages of the LTC2992 datasheet.

The LTC®2992 is a rail-to-rail system monitor that measures current, voltage, and power of two supplies.

n Rail-to-Rail Input Range: 0V to 100V n Wide Input Supply Range: 2.7V to 100V n Measures Current, Voltage, and Power n Shunt Regulator for Supplies >100V n 8-/12-Bit ADCs with Less Than ±0.3% Total Unad- justed Error n Four General Purpose Inputs/Outputs Configurable as ADC Inputs n Continuous Scan and Snapshot Modes n Stores Minimum and Maximum Measurements n Alerts When Alarm Thresholds Exceeded n Shutdown Mode with IQ < 50μA n Split SDA Pin Eases Opto-Isolation n Available in 16-Lead 4mm × 3.
