LTC3025-2, LTC3025-1 500mA Micropower VLDO Linear Regulators

Linear Technology

Description

.
The LTC®3025-X is a micropower, VLDO™ (very low dropout) linear regulator which operates from input voltages as low as 0.

📥 Download Datasheet

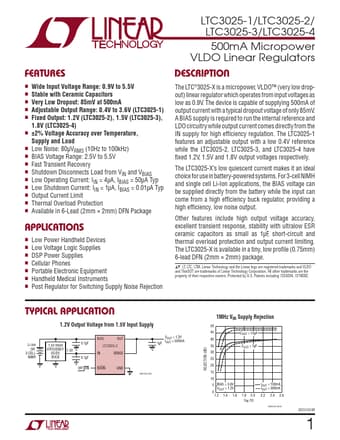

LTC3025-2 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTC3025-2, LTC3025-1. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LTC3025-2, LTC3025-1
Manufacturer: Linear Technology
File Size: 250.11 KB
Datasheet: LTC3025-1_LinearTechnology.pdf
Description: 500mA Micropower VLDO Linear Regulators
Note: This datasheet PDF includes multiple part numbers: LTC3025-2, LTC3025-1.
Please refer to the document for exact specifications by model.

Features

* n Wide Input Voltage Range: 0.9V to 5.5V n Stable with Ceramic Capacitors n Very Low Dropout: 85mV at 500mA n Adjustable Output Range: 0.4V to 3.6V (LTC3025-1) n Fixed Output: 1.2V (LTC3025-2), 1.5V (LTC3025-3), 1.8V (LTC3025-4) n ±2% Voltage Accuracy over Temperature, Supply and Load n Low Noise: 8

Applications

* n Low Power Handheld Devices n Low Voltage Logic Supplies n DSP Power Supplies n Cellular Phones n Portable Electronic Equipment n Handheld Medical Instruments n Post Regulator for Switching Supply Noise Rejection LTC3025-1/LTC3025-2/ LTC3025-3/LTC3025-4 500mA Micropower VLDO Linear Regulators Desc
