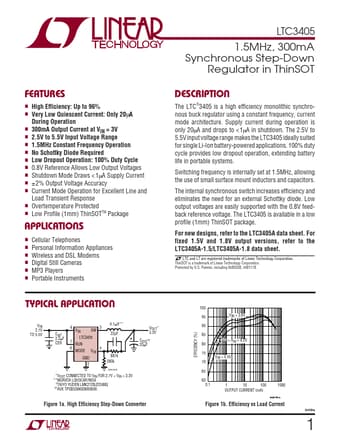

LTC3405 Datasheet, Regulator, Linear Technology

LTC3405 Features

• Regulator
• High Efficiency: Up to 96%
• Very Low Quiescent Current: Only 20µA During Operation
• 300mA Output Current at VIN = 3V
• 2.5V to 5.5V Input Voltage Ran

PDF File Details

Part number:

LTC3405

Manufacturer:

Linear Technology

File Size:

231.38kb

Download:

📄 Datasheet

Description:

Synchronous step-down regulator.

LTC3405 Application

• Applications 100% duty cycle provides low dropout operation, extending battery life in portable systems. Switching frequency is internally set at 1
