LTC3720 Datasheet, Controller, Linear Technology

LTC3720 Features

  • Controller s 5-Bit Programmable Output Voltage: 1.05V to 1.825V (VRM8.5) s No Sense Resistor Required s 2% to 87% Duty Cycle at 200kHz s tON(MIN) ≤ 100ns s Supports Active Voltage Positioning s Tr

PDF File Details

Part number:

LTC3720

Manufacturer:

Linear Technology

File Size:

296.38kb

Download:

📄 Datasheet

Description:

Single phase vrm8.5 current mode step-down controller.

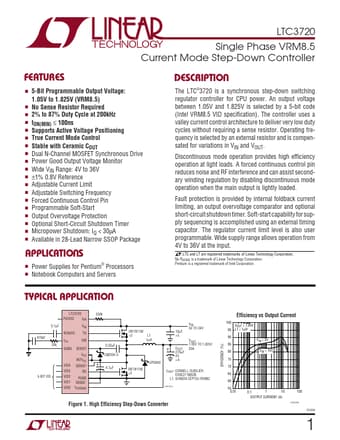

Datasheet Preview: LTC3720 📥 Download PDF (296.38kb)
