LTC3775

High Frequency Synchronous Step-Down Voltage Mode DC/DC Controller

LTC3775 Features

* n Wide VIN Range: 4.5V to 38V n Line Feedforward Compensation n Low Minimum On-Time: tON(MIN) < 30ns n Powerful Onboard MOSFET Drivers n Leading Edge Modulation Voltage Mode Control n ±0.75%, 0.6V Reference Voltage Accuracy Over Temperature n VOUT Range: 0.6V to 0.8VIN n Programmable, Cycle-by-Cycle

LTC3775 General Description

The LTC®3775 is a high efficiency synchronous step-down switching DC/DC controller that drives an all N-channel power MOSFET stage from a 4.5V to 38V input supply voltage. A patented line feedforward compensation circuit and a high bandwidth error amplifier provide very fast line and load transient re.

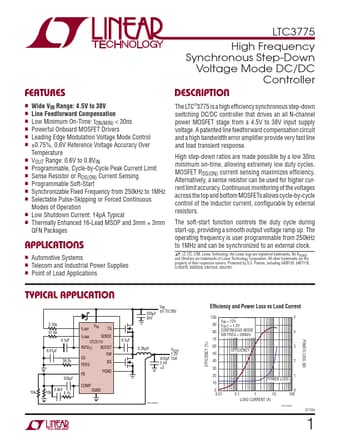

LTC3775 Datasheet (539.66 KB)

Preview of LTC3775 PDF

Datasheet Details

Part number:

LTC3775

Manufacturer:

Linear Technology

File Size:

539.66 KB

Description:

High frequency synchronous step-down voltage mode dc/dc controller.
