LTC3811 - Multiphase Step-Down DC/DC Controller

📥 Download Datasheet

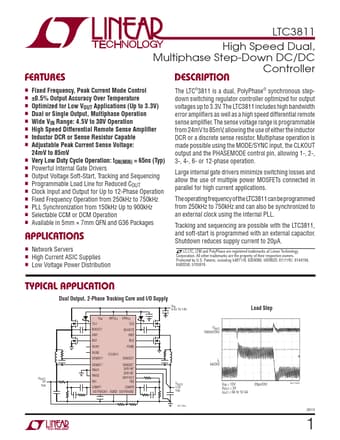

Preview of LTC3811 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number LTC3811
Manufacturer Linear Technology
File Size 538.78 KB
Description Multiphase Step-Down DC/DC Controller
Datasheet download datasheet LTC3811_LinearTechnology.pdf

LTC3811 Product details

Description

Controller Fixed Frequency, Peak Current Mode Control ±0.5% Output Accuracy Over Temperature Optimized for Low VOUT Applications (Up to 3.3V) Dual or Single Output, Multiphase Operation Wide VIN Range: 4.5V to 30V Operation High Speed Differential Remote Sense Amplifier Inductor DCR or Sense Resistor Capable Adjustable Peak Current Sense Voltage: 24mV to 85mV Very Low Duty Cycle Operation: tON(MIN) = 65ns (Typ) Powerful Internal Gate D

Features
