LTC4222 Dual Hot Swap Controller

The LTC®4222 Hot Swap™ controller allows two power paths to be safely inserted and removed from a live backplane. Using external N-channel pass transistors, board supply voltages and inrush currents are ramped up at an adjustable rate. An I2C interface and onboard ADC allows for monitoring of curren.

LTC4222 Features

* n Allows Safe Insertion Into a Live Backplane n 10-Bit ADC Monitors Currents and Voltages n I2C/SMBus Interface n Wide Operating Voltage Range: 2.9V to 29V n dI/dt Controlled Soft-Start n High Side Drive for External N-Channel MOSFETs n No External Gate Capacitors Required n Input Overvoltage/Underv

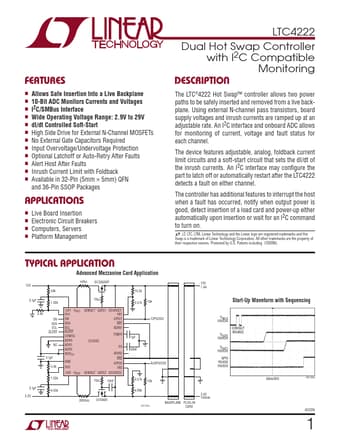

LTC4222 Datasheet (339.07 KB)
