LTC4224-1 Datasheet, Controller, Linear Technology

LTC4224-1 Features

  • Controller n n n n n n n n n n n Allows Safe Board Insertion and Removal from a Live Backplane Controls Load Voltages from 1V to 6V No Gate Components Required Adjustable Current Limit with Circu

PDF File Details

Part number:

LTC4224-1

Manufacturer:

Linear Technology

File Size:

257.26kb

Download:

📄 Datasheet

Description:

Compact dual low voltage hot swap controller. The LTC®4224 Dual Low Voltage Hot Swap™ controller allows a board to be safely inserted and removed from a live backplane. It control

Datasheet Preview: LTC4224-1 📥 Download PDF (257.26kb)

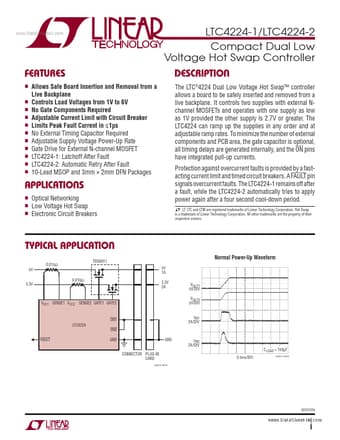

Page 2 of LTC4224-1 Page 3 of LTC4224-1

LTC4224-1 Application

  • Applications n n n Optical Networking Low Voltage Hot Swap Electronic Circuit Breakers TYPICAL APPLICATION 0.015Ω 5V 0.010Ω 3.3V FDS6911 5V 1A 3.3
