LTC4260

Positive High Voltage Hot Swap Controller

LTC4260 Features

* n Allows Safe Board Insertion into Live Backplane n 8-Bit ADC Monitors Current and Voltage n I2C™/SMBus Interface n Wide Operating Voltage Range: 8.5V to 80V n High Side Drive for External N-Channel MOSFET n Input Overvoltage/Undervoltage Protection n Optional Latchoff or Autoretry After Faul

LTC4260 General Description

The LTC®4260 Hot Swap™ controller allows a board to be safely inserted and removed from a live backplane. Using an external N-channel pass transistor, the board supply voltage can be ramped up at an adjustable rate. An I2C interface and onboard ADC allow monitoring of board current, voltage and faul.

LTC4260 Datasheet (325.79 KB)

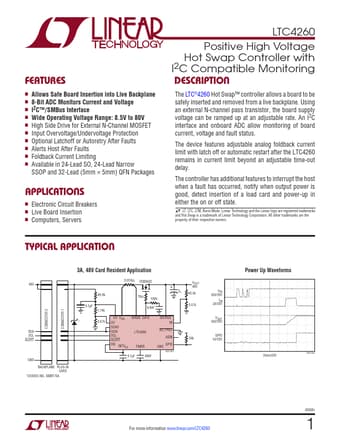

Preview of LTC4260 PDF

Datasheet Details

Part number:

LTC4260

Manufacturer:

Linear Technology

File Size:

325.79 KB

Description:

Positive high voltage hot swap controller.
