LTC4263

Single IEEE 802.3af Compliant PSE Controller

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Analog Devices Inc LTC4263IS-TRPBF IC POE CNTRL 1 CHANNEL 14SOIC DigiKey 2500 2500 units
$5.3

LTC4263 Datasheet (354.07 KB)

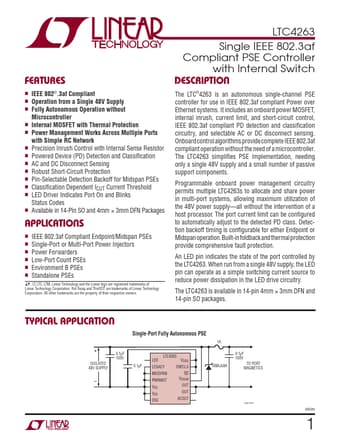

Preview of LTC4263 PDF

Datasheet Details

Part number:

LTC4263

Manufacturer:

Linear Technology

File Size:

354.07 KB

Description:

Single ieee 802.3af compliant pse controller.

LTC4263 Features

* n IEEE 802®.3af Compliant n Operation from a Single 48V Supply n Fully Autonomous Operation without Microcontroller n Internal MOSFET with Thermal Protection n Power Management Works Across Multiple Ports with Simple RC Network n Precision Inrush Control with Internal Sense Resistor n Powered Device

LTC4263 General Description

The LTC®4263 is an autonomous single-channel PSE controller for use in IEEE 802.3af compliant Power over Ethernet systems. It includes an onboard power MOSFET, internal inrush, current limit, and short-circuit control, IEEE 802.3af compliant PD detection and classification circuitry, and selectable A.
