LTC4267-1 - Power over Ethernet IEEE 802.3af PD Interface

📥 Download Datasheet

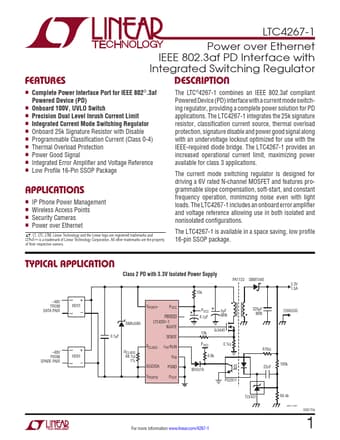

Preview of LTC4267-1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number LTC4267-1
Manufacturer Linear Technology
File Size 373.40 KB
Description Power over Ethernet IEEE 802.3af PD Interface
Datasheet download datasheet LTC4267-1_LinearTechnology.pdf

LTC4267-1 Product details

Description

n Complete Power Interface Port for IEEE 802®.3af Powered Device (PD) n Onboard 100V, UVLO Switch n Precision Dual Level Inrush Current Limit n Integrated Current Mode Switching Regulator n Onboard 25k Signature Resistor with Disable n Programmable Classification Current (Class 0-4) n Thermal Overload Protection n Power Good Signal n Integrated Error Amplifier and Voltage Reference n Low Profile 16-Pin SSOP Package Applications n IP Phone Power Management n Wireless Access Points n Security Cam

Features
