LTM9010-14 Datasheet, adcs equivalent, Linear Technology

LTM9010-14 Features

  • Adcs 8-Channel Simultaneous Sampling ADC 73.1dB SNR 88dB SFDR Low Power: 140mW/113mW/94mW per Channel Single 1.8V Supply Serial LVDS Outputs: 1 or 2 Bits per Channel Selectable Input Ranges:

PDF File Details

Part number:

LTM9010-14

Manufacturer:

Linear Technology

File Size:

544.83kb

Download:

📄 Datasheet

Description:

125msps/105msps/ 80msps low power octal adcs. The LTM®9011-14/LTM9010-14/LTM9009-14 are 8-channel, simultaneous sampling 14-bit A/D converters designed for digitizing high frequen

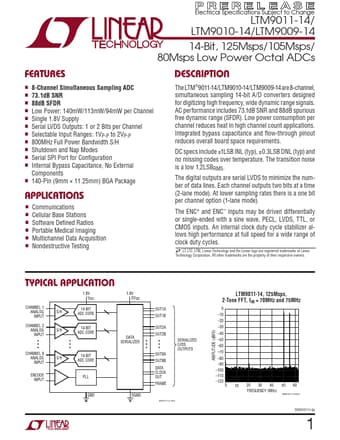

Datasheet Preview: LTM9010-14 📥 Download PDF (544.83kb)
Page 2 of LTM9010-14 Page 3 of LTM9010-14

LTM9010-14 Application

  • Applications Integrated bypass capacitance and flow-through pinout reduces overall board space requirements. DC specs include ±1LSB INL (typ), ±0.3
