LTM9011-14, 125Msps/105Msps/ 80Msps Low Power Octal ADCs

LTM9011-14/ LTM9010-14/LTM9009-14 14-Bit, 125Msps/105Msps/ 80Msps Low Power Octal ADCs .
The LTM®9011-14/LTM9010-14/LTM9009-14 are 8-channel, simultaneous sampling 14-bit A/D converters designed for digitizing high frequency, wide dynamic.

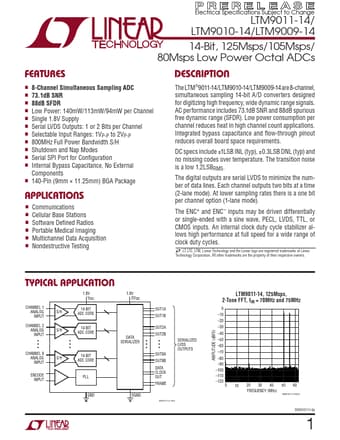

datasheet Preview Page 1 from Datasheet4u.com

LTM9011-14_LinearTechnology.pdf

LTM9011-14 Datasheet Preview — Preview of LTM9011-14 PDF

Datasheet Details

Part number:

LTM9011-14

Manufacturer:

Linear Technology

File Size:

544.83 KB

Description:

125Msps/105Msps/ 80Msps Low Power Octal ADCs

Features

* 8-Channel Simultaneous Sampling ADC 73.1dB SNR 88dB SFDR Low Power: 140mW/113mW/94mW per Channel Single 1.8V Supply Serial LVDS Outputs: 1 or 2 Bits per Channel Selectable Input Ranges: 1VP-P to 2VP-P 800MHz Full Power Bandwidth S/H Shutdown and Nap Modes Serial SPI Port for Configuration Internal B

Applications

* Integrated bypass capacitance and flow-through pinout reduces overall board space requirements. DC specs include ±1LSB INL (typ), ±0.3LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 1.2LSBRMS. The digital outputs are serial LVDS to minimize the number of data line
